Continuous Drying Machine Hot Sale Animal Manure Organic Fertilizer Granulation Production Line

1 Piece
MOQ
$46,000.00(>=1 Pieces)
Prix
Continuous Drying Machine Hot Sale Animal Manure Organic Fertilizer Granulation Production Line
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type: Rotary Drying Equipment
Application: Drying Processing
Condition: New
Voltage: 220v-10kv
Power: 22-30kw
Dimension(L*W*H): Customized
Key Selling Points: Energy saving
Warranty: 1 Year
Weight (KG): 26500
Applicable Industries: Manufacturing Plant, Energy & Mining
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC
Heating Method: Biomass, natural gas, diesel, coal
Material: SUS304, SUS304L, SUS316, SUS316L, Ti, Other
Product name: Manure organic fertilizer production line
Vaporization(t/h): 0.7-4.0t/h
Early moisture(%): 60-70%
Final moisture(%): 12-15%(can be adjusted)
Temperature range(℃): 300-400℃
Application material: Chicken manure, cattle manure, pig manure, other poultry manure
Feature: Continuous Drying Machine
Color: Customers Request
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Video technical support
Informations de base
Conditions de paiement et expédition
Packaging Details: Container packing
Supply Ability: 10 Piece/Pieces per Month
Description de produit
Model
Capacity
（T/D）
Initial moisture（%）
Final moisture（%）
Total Power（kw）
Covering area（m²）
JTJG1408
31





60±5%





12-15%
40
5×14m
JTJG1610
45
55
6×16m
JTJG2010
87.5
95
8×16m
JTJG2010/3
104
100
8×16m
JTJG2210/3
122
125
10×16m
JTJG2510/3
150
145
10×18m
JTJG2512/3
181
165
10×20m
Introduction
Chicken Manure Dryer, also known as paddle agitated rotary drum dryer, rake roller dryer, rotary rake drum dryer, and rotary paddle drum dryer. The machine has kept the ordinary drum advantages of the dryer, it is custom-designed suit to the disadvantage of the moisture is more than 50% weak stick, sticking material drying, and the drum center "black hole" phenomenon lead to the unit area evaporation capacity is inefficiency and high fuel consumption, etc. Increasing the high-speed rotation of the blade, strengthen the material grinding and decentralized function, and fill the drum center "black hole". The material surface area fully expanded, to maximize heat transfer between the material and drying air. Because of the material particles to minimize and the heat transfer evaporation rate greatly improved. After a large area of ​​production, practice proved that chicken manure dryer compares with ordinary drum dryer. The unit area of ​​water evaporation capacity of 25-30kg water / m2 • h, which is 1-2 times the ordinary drum dryer. The output of the same size drying Machine increased by 50% or more, and fuel energy consumption reduced by more than 30%. equipment spatial footprint is ​​smaller than 40%. The material moisture content dry more uniform, and more than 40% efficiency. Application Our dryer is also suitable for cow dung, feces organic fertilizer, sludge, bean dregs, starch residue, sauce residue, sprayed corn kernels, cassava residue, beer distiller's grains, lees, straw, pasture and other 50-85% moisture content of material Drying.
Working principle:

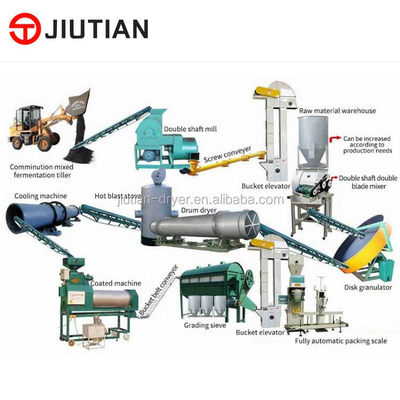

Chicken manure drying production line comprising：
A dewatering machine, hot air stove, feeder, feeding machine, rotary drum, discharging machine, material crushing unit, fan, discharge, and power cabinet.
Drying process:
75-85% moisture content of the material fed into the special dehydration machine, the water removed to about 65% through the screw conveyor into the mixing drum dryer to downstream drying. Flights pick up material, carry it over, and shower it through the air stream as the drum rotates, promoting maximize the efficiency of heat transfer between the material and drying air. The rapid evaporation of water vaporization, to achieve the effect of drying materials in the hot air under the rapid flow of the drum. The rotary drum dryer gives the material a chance to dry before it hits the next flights, in order to prevent buildup near the wet material discharge. The drum cleaning device is installed inside of the drum to prevent the material sticking issue.
Air Stream Flow Process：
The air through the air blower increase pressure into the hot air furnace to heating, when the temperature reached to 600-850℃, the hot air will be into dryer to drying wet material and evaporation water by induce draft fan. Through three-layer heat transfer, the air temperature reduces to 55-65℃ and then discharge from dryer. The dust and moisture are purified trough the cyclone dust collector and wet dust collector.
Zhengzhou Jiutian Machinery Equipment Co.,Ltd covers coal drying system equipment for slime, lignite, Mongolian coal, clean coal and fly ash;Dregs drying equipment for Brewer’s grains,corn shell,kitchen waste,cassava residue,fruit residue,sauce residue,potato residue,bagasse residue,medicine residue;drying equipment for corn,sorghum, rice,soybean, peanut seedling and wheat straw;haydrying equipment for alfalfa,oats,dog tail grass,etc;complete wood processing leftovers drying and pelletizing production line for sawdust, shavings,wood flour,wood bran and wood chips etc;other drying product for gypsum, slag materials, bentonite, sludge etc.
Q: What is your Business Model? Trading company or factory?
A: We are a 15 years factory, all our machinery is manufactured by ourselves, factory direct sales, product quality, and
after-sales service can be guaranteed.

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.We will pick you up at the airport. Welcome to visit our factory.

Q: What is the Quality of your products?
A: Zhengzhou Jiutian products come with the best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia,South Africa, etc. You can rest assured of the quality absolutely.

Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.
